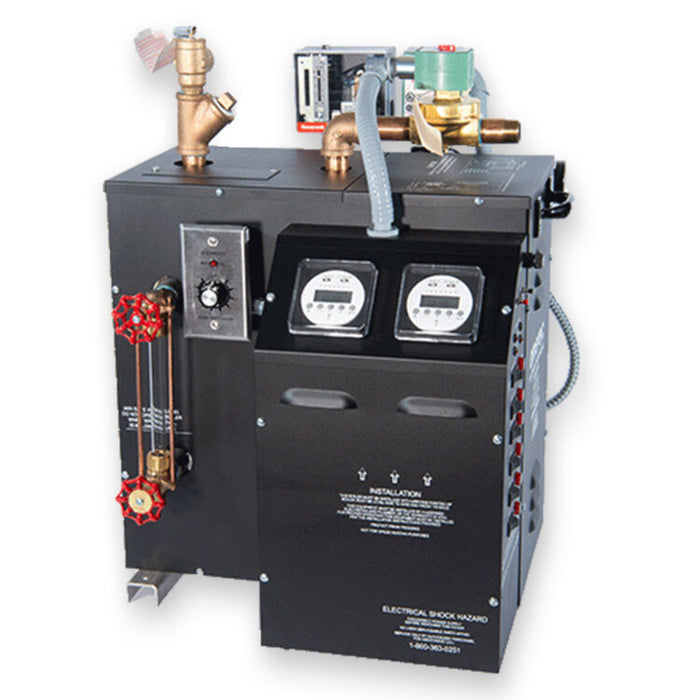

The AI-36 commercial steam generator has a power rating of 36 kilowatts and can power up to two large steam rooms with dimensions up to 1,800 adjusted cubic feet (ACF).
The Amerec AI-36 unit features an ASME-certified pressure vessel for instant steam production, temperature safety system, indicator lights with diagnostics, water level sight glass, low water cut-off with manual reset, and a variety of other features.
The high-efficiency, low-maintenance AI-36 steam shower generator is designed to minimize crucial downtime and service costs. As a member of the AI Series of boilers, the Amerec AI-36 provides years of reliable and hands-off, automated operation. The unit features an all-steel exterior and stainless-steel feet to prevent corrosion.
Amerec AI Series commercial steam boilers are UL and cUL listed and comply with ASME requirements to ensure safety and quality. All AI units are pre-tested and factory-assembled to assure that your generator is working perfectly.
The Amerec AI-36 is available in 208V three-phase (9006-363), 240V three-phase (9006-364), and 480V three-phase (9006-366) configurations.
The AI-36 steam bath generator requires the use of a control for operation. Controls allow facility operators to control steam room functionality such as temperature, bathing duration, and pre-heating. Select the available control with features that best suit your preferences.
We recommend the addition of the available ADI Automatic Drain system with the AI-36 unit. The ADI Automatic Drain System performs daily draining and flushing of the boiler tank to prevent build-up of solids such as scale and sludge.
Features
- Pressurized vessel for instant steam
- Durable electronic components
- Low water cut-off with manual reset
- 3/4” drain port
- Room high limit temperature safety system
- Operating, electronic high limit pressure control systems
- Sight glass
- Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system
- Alarm circuit panic button
- ASME safety valve
- ASME certified low-pressure operation vessel.
Includes
- AI-36 steam boiler
- Two 3/4” NPT steam heads
- Installation and operation manual
- Limited warranty
Specification
- Model Al-36
- Minimum Adjusted Cubic Feet 1500
- Maximum Adjusted Cubic Feet 1800
- Shipping Weight 255 lbs
- Kilowatt Rating 36 KW
- Electrical Specifications Electrical Chart
- Water Supply Connection 1/2" NPT
- Generator Steam Line Connection 3/4" NPT
- Steam Head Connection 3/4" NPT
- Drain Connection 3/4" NPT
- Safety Relief Valve Connection 3/4" NPT
- Safety Relief Valve PSIG 15 PSIG
- Control "Rough In" Cut Out 2-1/8" x 3-1/4"
- Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
- Control Sensor "Rough In" Cut Out 7/8" Diameter
- Generator Control Connection 3 Position Terminal Block
- Generator Control Cable 25', 3 Conductor, 22 AWG, Shielded Cable
- Width 17-1/2"
- Depth 20-3/4"
- Height 23-1/4"
