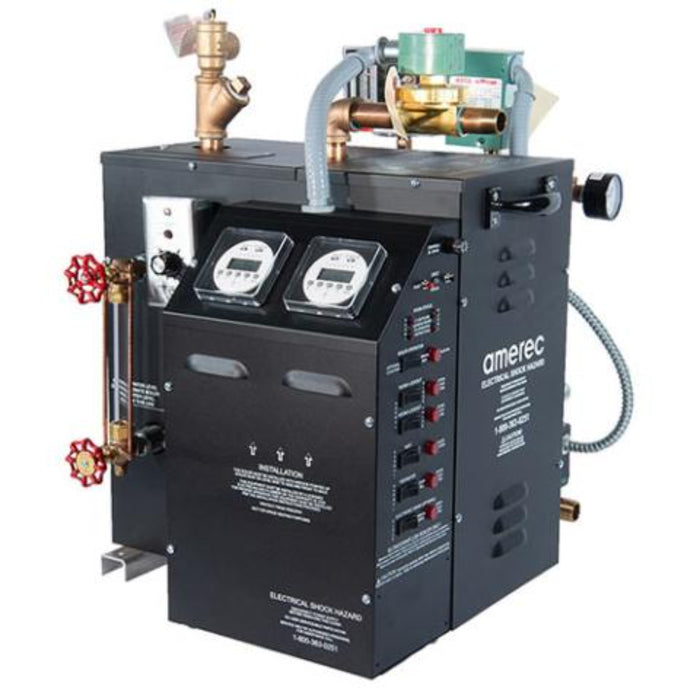

This 30-kilowatt electric steam room boiler can power up to two large steam baths with dimensions up to 1,500 adjusted cubic feet (ACF).
The AI-30 unit features an ASME-certified pressure vessel for instant steam, durable electronic components, temperature safety system, water level sight glass, LED indicator lights with diagnostics, and a variety of other noteworthy features.
Health clubs, resorts, hotels, and commercial wellness facilities trust the heavy-duty AI-30 generator for easy maintenance and hands-off, automated operation. The AI-30 is equipped with a corrosion-resistant steel exterior and multiple safety features which help minimize service costs and crucial downtime.
The AI-30 commercial steam boiler is UL and cUL listed and complies with ASME requirements to ensure safety and quality. All HC Series units are delivered pre-assembled and ready to install.
The Amerec AI-30 steam generator is available in 208V three-phase (9006-303), 240V three-phase (9006-304), and 480V three-phase (9006-306) configurations.
The AI-30 unit requires the use of a control for operators. Controls allow facility operators to control features such as temperature, duration, and pre-heating. Select the available control with features that best suit your facility needs.
We recommend the addition of the available ADI Automatic Drain System with your AI-30 unit. The ADI Automatic Drain System performs daily flushing of the generator tank to reduce build-up of solids such as scale and sludge.
Features
- Pressurized vessel for instant steam
- Durable electronic components
- Low water cut-off with manual reset
- 3/4” drain port
- Room high limit temperature safety system
- Operating, electronic high limit pressure control systems
- Sight glass
- Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system
- Alarm circuit panic button
- ASME safety valve
- ASME certified low-pressure operation vessel
Includes
- AI-30 steam boiler
- Two 3/4” NPT steam heads
- Installation and operation manual
- Limited warranty
Specification
- Model AI-30
- Minimum Adjusted Cubic Feet 1200
- Maximum Adjusted Cubic Feet 1500
- Shipping Weight 255 lbs
- Kilowatt Rating 30 KW
- Electrical Specifications Electrical Chart
- Water Supply Connection 1/2" NPT
- Generator Steam Line Connection 3/4" NPT
- Steam Head Connection 3/4" NPT
- Drain Connection 3/4" NPT
- Safety Relief Valve Connection 3/4" NPT
- Safety Relief Valve PSIG 15 PSIG
- Control "Rough In" Cut Out 2-1/8" x 3-1/4"
- Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
- Control Sensor "Rough In" Cut Out 7/8" Diameter
- Generator Control Connection 3 Position Terminal Block
- Generator Control Cable 25', 3 Conductor, 22 AWG, Shielded Cable
- Width 17-1/2"
- Depth 20-3/4"
- Height 23-1/4"
